Discreet detection of sources of ionizing radiation with identification of radionuclides.
Effective technical solution to prevent illegal traffic of radioactive materials.
-
Best in class
-
20 hours of operation time
-
Automatic simultaneous gamma and neutron radiation scanning with radionuclide identification
-
Continuous recording of scanning data with GPS referencing for further analysis
-
Dose rate measurement range can be expanded to 10 Sv/h
-

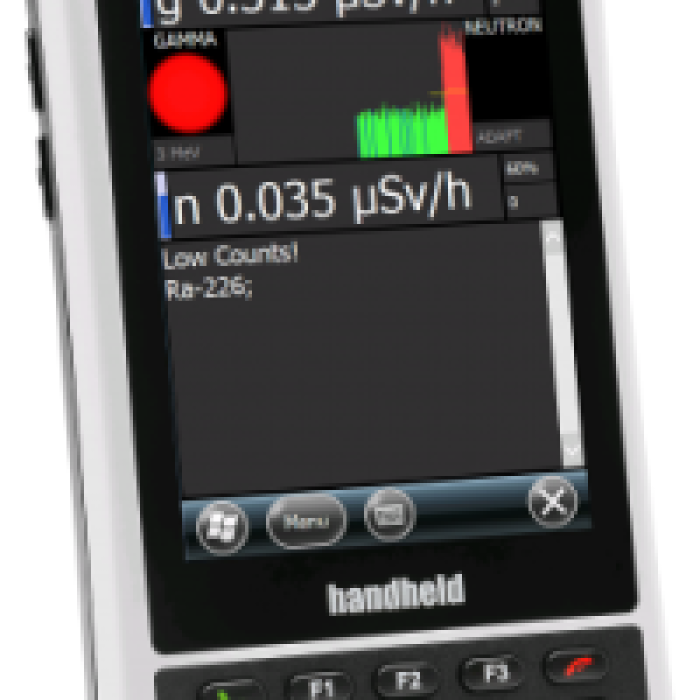

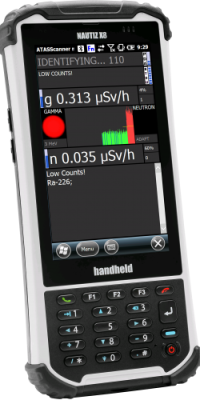

“GARM” application software for further data processing and analysis in expert mode
-
“ARMS” application software for automatic transfer of data to a remote server (option)
| AT6101C | AT6101CM | |
|---|---|---|
| Gamma radiation detection unit | BDKG-11M (1 or 2 units) Scintillation NaI(Tl) Ø63×63 mm | BDKG-19M (1 or 2 units) Scintillation NaI(Tl) Ø63×160 mm |
| Measurement range of ambient dose equivalent rate | 0.01 – 150 µSv/h | 0.01 – 50 µSv/h |
| Sensitivity to 137Cs gamma radiation | ≥2200 cps/µSv·h-1 (≥4400 cps/µSv·h-1)* |
≥6000 cps/µSv·h-1 (≥12000 cps/µSv·h-1)* |
| Minimal detectable level of gamma radiation dose rate from a source, travelling at the speed of 0.5 m/s | 0.05 µSv/h (0.035 µSv/h)* |
0.03 µSv/h (0.02 µSv/h)* |
| Minimal detectable activity of 137Cs source, located at the distance of 1 m in a time not longer than 2 s. (95% probability of source detection with false alarm rate not above 1 in 10 min.) | (450±10) kBq [(320±10) kBq]* |
(300±10) kBq [(210±10) kBq]* |
| Alarm activation time | <2 s | |
| Typical energy resolution at 662 keV (137Cs) | 7.5% | 8% |
| Identified radionuclides (The library content can be modified on request) | Industrial, natural, medical, bremsstrahlung of beta emitters | |
| Option to extend the dose rate measurement range | BDKG-04 detection unit, up to 10 Sv/h | |
| Neutron radiation detection unit, detector | BDKN-05**, Two Не-3 proportional counters Ø30×360 mm in polyethylene moderator | |
| Energy range | 0.025 eV – 14 MeV | |
| Sensitivity to 252Cf neutron radiation | ≥20 impulses·cm2/neutron | |
| Minimal detectable activity of Pu-Be source, located at the distance of 1.25 m in a time not longer than 3 s. (95% probability of source detection with false alarm rate not above 1 in 1 h) | (5.00±1.25)∙104 neutrons/s-1 | |

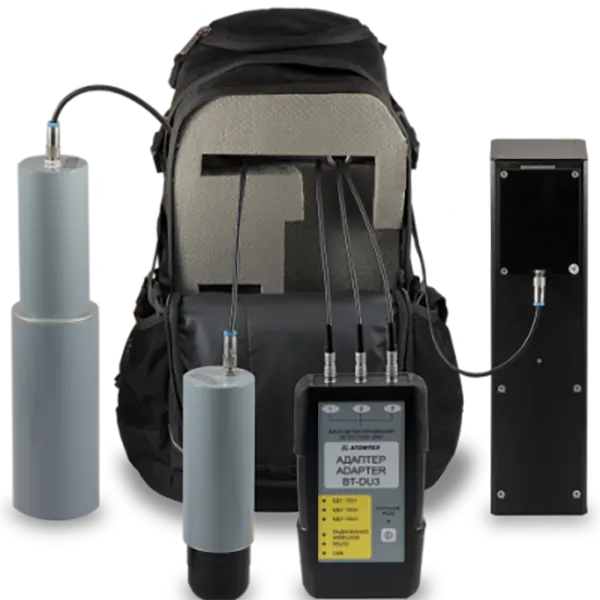

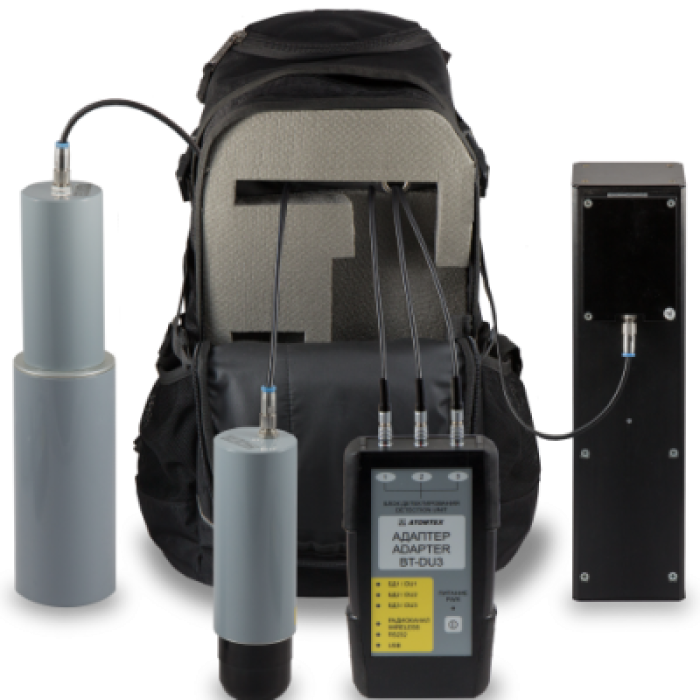

| Dimensions | 450х330х250 mm (in a backpack) 625х500х300 mm (in a case) | 500х330х250 mm (in a backpack) 625х500х300 mm (in a case) |
| Weight*** | 7 kg (in a backpack) 17 kg (in a case) |
8.5 kg (in a backpack) 18.5 kg (in a case) |
| * Configuration with two BDKG-11M (BDKG-19) detection units ** Not available for configuration with two BDKG-11M (BDKG-19) detection units *** Configuration with BDKG-11M (BDKG-19M), BDKG-04 and BDKN-05 detection units |
||
